About FIVA™Flow

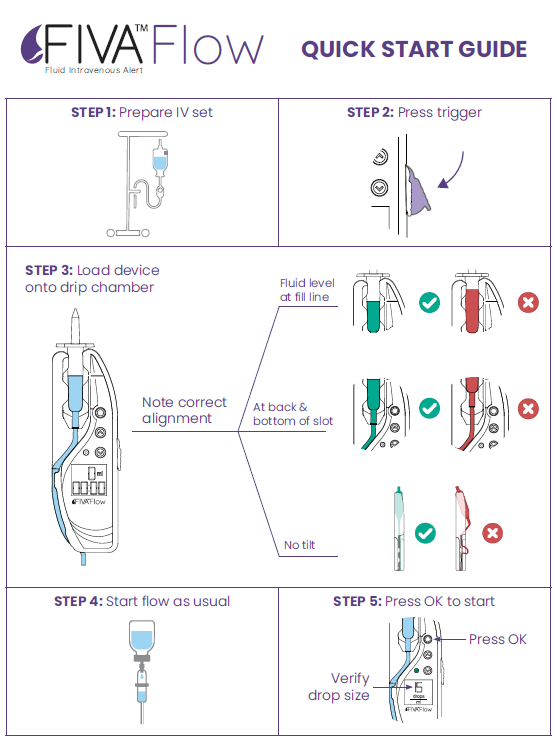

How to use FIVA™Flow

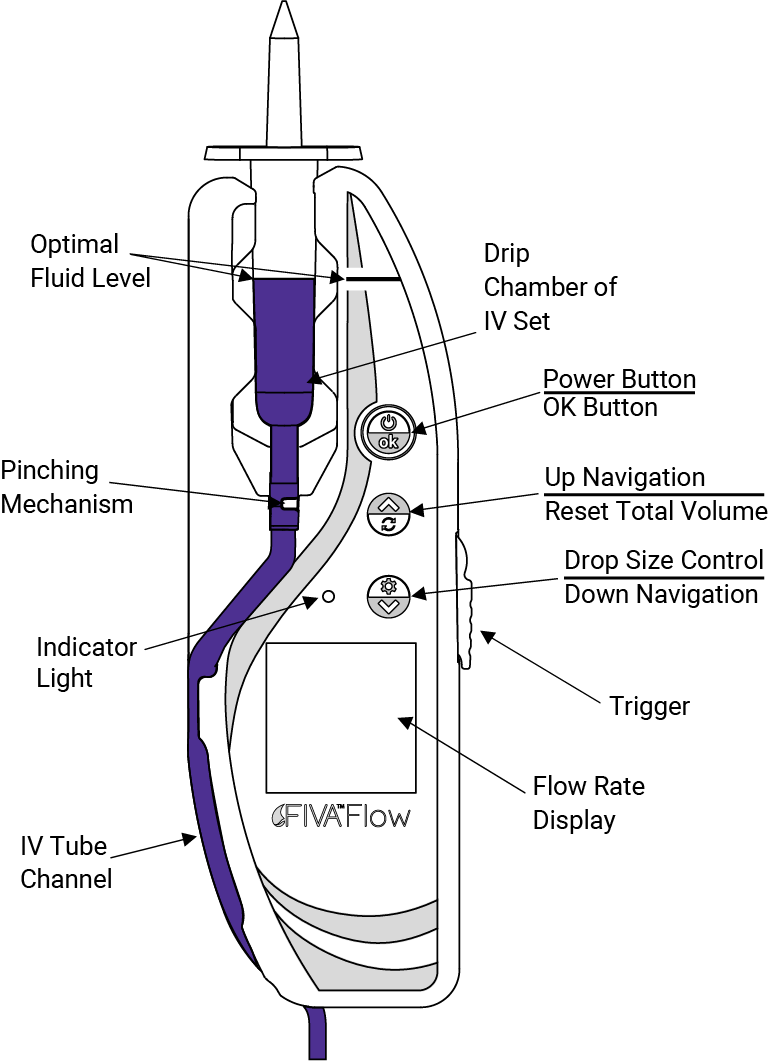

FIVA™Flow Features
Flexible opening
Making FIVA™Flow adaptable to almost any IV tubing set.
Pinching mechanism
When activated, pinches the IV line to block flow & prevent air from entering the IV line.
Front display
Displays the flow rate and other important infusion information, such as total volume infused.
Long battery life
Powered by 2 AAA batteries, the device can last months before the batteries need to be changed.
FIVA™Flow Alerts

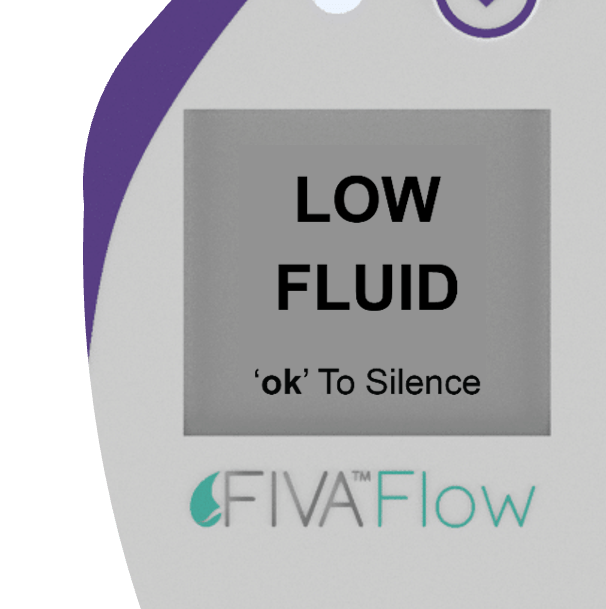

Low Fluid Alert
Occurs if the IV bag is empty

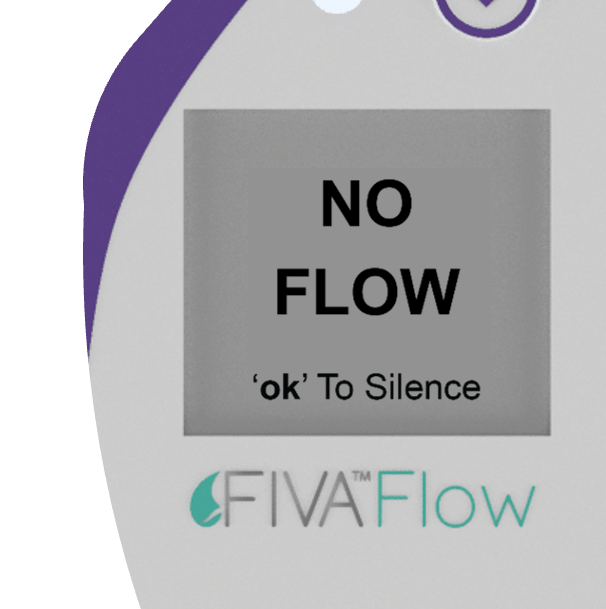

No Flow Alert
Occurs if no drops are detected for 60 consecutive seconds

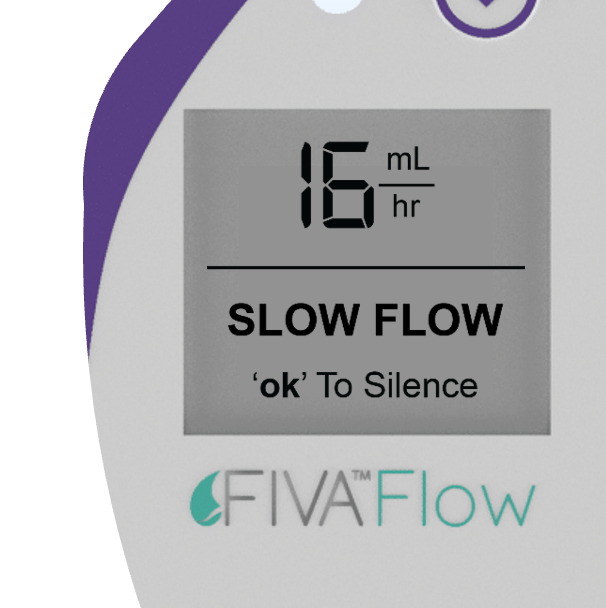

Slow Flow Alert
Occurs if flow is below 30 mL/hr
FIVA™Flow Technical Specifications
Device Class
Class I Medical Device in Canada
IV Set Compatibility
Any standard gravity-fed
IV set
Size (L x W x H)
50 x 20 x 150 mm
(2 x 3/4 x 6 in)
Weight
110g with batteries
(1/4 lbs.)
Power Source
2 x AAA batteries
(LR03, FR03)
Housing
Medical Grade ABS
Storage Environment
-40°C to +40°C, 20% to 80% humidity, non-condensing
Operating Conditions
4°C to 40°C, 20% to 80% humidity, non-condensing
Operating Time
30 days of intermittent use; 7 days of continuous use
Visual Indicator
Flashing LED Light
Audible Alert
80 dB Speaker
3rd Party Certification
IEC 60601-1;
IEC 60601-1-2, IEC 60601-1-6
